| Photo | Mfr. Part # | Stock | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41554E4689Q000CAP ALUM 68000UF 16V SCREW |
3114 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41554 | Obsolete | 68000 µF | -10%, +30% | 16 V | 13mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 14 A @ 100 Hz | - | 11 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41554E5479Q000CAP ALUM 47000UF 25V SCREW |
3712 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41554 | Obsolete | 47000 µF | -10%, +30% | 25 V | 13mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 12 A @ 100 Hz | - | 11 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41554E5689Q000CAP ALUM 68000UF 25V SCREW |
3218 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41554 | Obsolete | 68000 µF | -10%, +30% | 25 V | 11mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 13 A @ 100 Hz | - | 9 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
B41554E7339Q000CAP ALUM 33000UF 40V SCREW |
2955 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41554 | Obsolete | 33000 µF | -10%, +30% | 40 V | 11mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 12 A @ 100 Hz | - | 10 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41554E7479Q000CAP ALUM 47000UF 40V SCREW |
3120 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41554 | Obsolete | 47000 µF | -10%, +30% | 40 V | 10mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 13 A @ 100 Hz | - | 9 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
|
B41554E8159Q000CAP ALUM 15000UF 63V SCREW |
2734 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41554 | Obsolete | 15000 µF | -10%, +30% | 63 V | 15mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 11 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41554E8229Q000CAP ALUM 22000UF 63V SCREW |
2309 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41554 | Obsolete | 22000 µF | -10%, +30% | 63 V | 12mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 13 A @ 100 Hz | - | 9 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
|
B41554E9109Q000CAP ALUM 10000UF 100V SCREW |
3344 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41554 | Obsolete | 10000 µF | -10%, +30% | 100 V | 15mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 14 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41554E9688Q000CAP ALUM 6800UF 100V SCREW |
3794 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41554 | Obsolete | 6800 µF | -10%, +30% | 100 V | 22mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 9.1 A @ 100 Hz | - | 17 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41570E4100Q000CAP ALUM 100000UF 16V SCREW |
2939 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41570 | Obsolete | 100000 µF | -10%, +30% | 16 V | 10mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 19 A @ 100 Hz | - | 9 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
|
B41570E4689Q000CAP ALUM 68000UF 16V SCREW |
3314 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41570 | Obsolete | 68000 µF | -10%, +30% | 16 V | 13mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 17 A @ 100 Hz | - | 13 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41570E5479Q000CAP ALUM 47000UF 25V SCREW |
3751 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41570 | Obsolete | 47000 µF | -10%, +30% | 25 V | 13mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 17 A @ 100 Hz | - | 11 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41570E5689Q000CAP ALUM 68000UF 25V SCREW |
2813 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41570 | Obsolete | 68000 µF | -10%, +30% | 25 V | 11mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 17 A @ 100 Hz | - | 9 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
|
B41570E7339Q000CAP ALUM 33000UF 40V SCREW |
2814 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41570 | Obsolete | 33000 µF | -10%, +30% | 40 V | 12mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 17 A @ 100 Hz | - | 12 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis Mount |
|

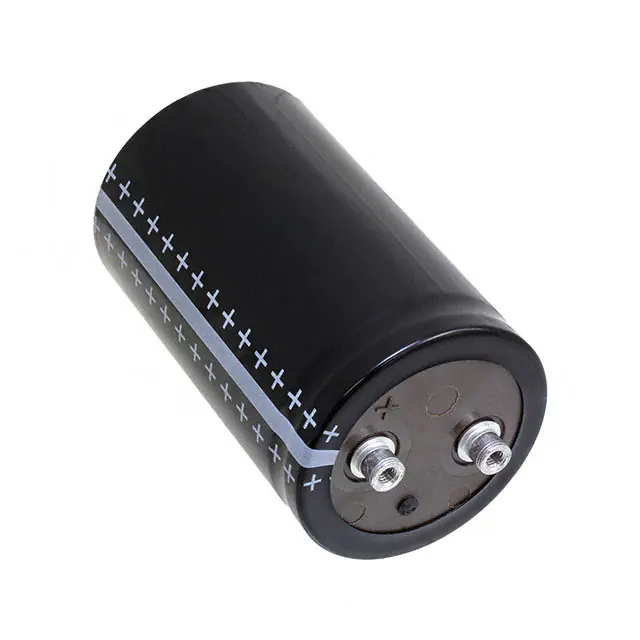

B41570E7479Q000CAP ALUM 47000UF 40V SCREW |
3629 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41570 | Obsolete | 47000 µF | -10%, +30% | 40 V | 8mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 17 A @ 100 Hz | - | 8 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
|
B41570E8159Q000CAP ALUM 15000UF 63V SCREW |
3703 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41570 | Obsolete | 15000 µF | -10%, +30% | 63 V | 13mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 15 A @ 100 Hz | - | 11 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41570E8229Q000CAP ALUM 22000UF 63V SCREW |
3630 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41570 | Obsolete | 22000 µF | -10%, +30% | 63 V | 10mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 17 A @ 100 Hz | - | 9 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
B41570E9109Q000CAP ALUM 10000UF 100V SCREW |
3040 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41570 | Obsolete | 10000 µF | -10%, +30% | 100 V | 15mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 16 A @ 100 Hz | - | 14 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41570E9159Q000CAP ALUM 15000UF 100V SCREW |
2311 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41570 | Obsolete | 15000 µF | -10%, +30% | 100 V | 13mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 18 A @ 100 Hz | - | 11 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
|
B41570E9688Q000CAP ALUM 6800UF 100V SCREW |
2433 |
Add To CartInquiry Now |
Datasheet |
Bulk | B41570 | Obsolete | 6800 µF | -10%, +30% | 100 V | 20mOhm @ 100Hz | 20000 Hrs @ 105°C | - | Polar | - | General Purpose | 13 A @ 100 Hz | - | 17 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis Mount |
