| Photo | Mfr. Part # | Stock | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

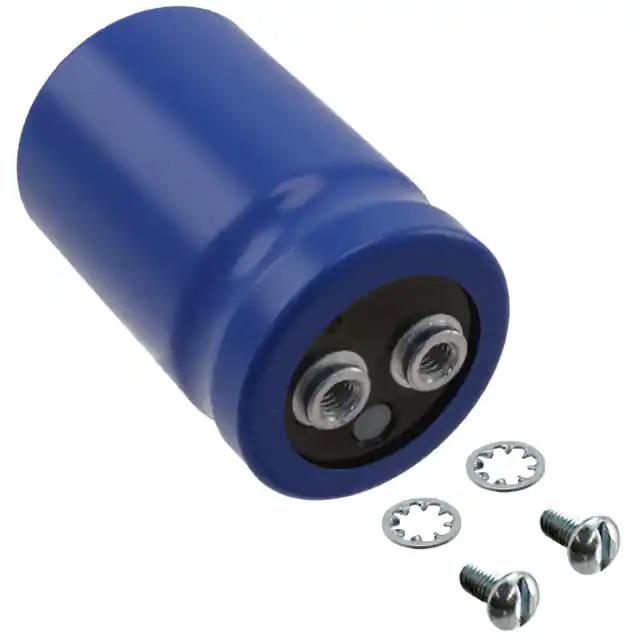

E36D630HPN104ME92MCAP ALUM 100000UF 20% 63V SCREW |
2236 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 100000 µF | ±20% | 63 V | 9.1mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.2 A @ 120 Hz | 19.88 A @ 3 kHz | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
E36D630HPN123MA67MCAP ALUM 12000UF 20% 63V SCREW |
3969 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 12000 µF | ±20% | 63 V | 22.2mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.17 A @ 120 Hz | 7.238 A @ 3 kHz | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 2.625 (66.68mm) | - | Chassis Mount |
|
E36D630HPN123MC48MCAP ALUM 12000UF 20% 63V SCREW |
3137 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 12000 µF | ±20% | 63 V | 25.2mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.24 A @ 120 Hz | 7.336 A @ 3 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 1.875 (47.63mm) | - | Chassis Mount |
|
|
E36D630HPN153MA79MCAP ALUM 15000UF 20% 63V SCREW |
3777 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 15000 µF | ±20% | 63 V | 18.2mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.15 A @ 120 Hz | 8.61 A @ 3 kHz | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
E36D630HPN153MC54MCAP ALUM 15000UF 20% 63V SCREW |
3473 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 15000 µF | ±20% | 63 V | 19.8mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.21 A @ 120 Hz | 8.694 A @ 3 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 2.125 (53.98mm) | - | Chassis Mount |
|
|
E36D630HPN154MED0MCAP ALUM 150000UF 20% 63V SCREW |
2034 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 150000 µF | ±20% | 63 V | 6.2mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.88 A @ 120 Hz | 27.832 A @ 3 kHz | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
|
E36D630HPN154MED0NCAP ALUM 150000UF 20% 63V SCREW |
3751 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 150000 µF | ±20% | 63 V | 6.2mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.88 A @ 120 Hz | 27.832 A @ 3 kHz | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
|
E36D630HPN223MAA5MCAP ALUM 22000UF 20% 63V SCREW |
2654 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 22000 µF | ±20% | 63 V | 13.2mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.22 A @ 120 Hz | 11.508 A @ 3 kHz | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
E36D630HPN223MC67CCAP ALUM 22000UF 20% 63V SCREW |
2015 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 22000 µF | ±20% | 63 V | 13.8mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.91 A @ 120 Hz | 11.074 A @ 3 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 2.625 (66.68mm) | - | Chassis Mount |
|
|
E36D630HPN223TC92MCAP ALUM 22000UF 63V SCREW |
2115 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 22000 µF | -10%, +50% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 3.625 (92.08mm) | - | Chassis Mount |
|
|
E36D630HPN274MEM9MCAP ALUM 270000UF 20% 63V SCREW |
2530 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 270000 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|
|
E36D630HPN284UEM9MCAP ALUM 280000UF 63V SCREW |
2304 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 280000 µF | -10%, +75% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 8.625 (219.08mm) | - | Chassis Mount |
|
|
E36D630HPN333MC79MCAP ALUM 33000UF 20% 63V SCREW |
3931 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 33000 µF | ±20% | 63 V | 11.2mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.85 A @ 120 Hz | 13.79 A @ 3 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
E36D630HPN333TEB5MCAP ALUM 33000UF 63V SCREW |
2743 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 33000 µF | -10%, +50% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.240 (31.50mm) | 3.000 Dia (76.20mm) | 4.528 (115.00mm) | - | Chassis Mount |
|
|
E36D630HPN393MC92MCAP ALUM 39000UF 20% 63V SCREW |
3923 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 39000 µF | ±20% | 63 V | 8.7mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.62 A @ 120 Hz | 16.268 A @ 3 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 3.625 (92.08mm) | - | Chassis Mount |
|
|
E36D630HPN472MA41MCAP ALUM 4700UF 20% 63V SCREW |
3387 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 4700 µF | ±20% | 63 V | 52.8mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.99 A @ 120 Hz | 4.186 A @ 3 kHz | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 1.625 (41.28mm) | - | Chassis Mount |
|
|
E36D630HPN473MCA5MCAP ALUM 47000UF 20% 63V SCREW |
3163 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 47000 µF | ±20% | 63 V | 7.5mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.01 A @ 120 Hz | 18.214 A @ 3 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
E36D630HPN822MA54MCAP ALUM 8200UF 20% 63V SCREW |
3654 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 8200 µF | ±20% | 63 V | 31.2mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.17 A @ 120 Hz | 5.838 A @ 3 kHz | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 2.402 (61.00mm) | - | Chassis Mount |
|
|
E36D630HPN823MDA5MCAP ALUM 82000UF 20% 63V SCREW |
2783 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 82000 µF | ±20% | 63 V | 6.8mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.6 A @ 120 Hz | 21.84 A @ 3 kHz | - | 1.125 (28.58mm) | 2.500 Dia (63.50mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
E36D630LPN143WCA5MCAP ALUM 14000UF 63V SCREW |
2950 |
Add To CartInquiry Now |
Datasheet |
Bulk | U36D | Obsolete | 14000 µF | -10%, +100% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
