| Photo | Mfr. Part # | Stock | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1393243-3RELAY GEN PURPOSE DPDT 8A 60V |
2071 |
Add To CartInquiry Now |
Datasheet |
Tube | RT2, SCHRACK | Active | Through Hole | 60VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 42 VDC | 6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
RTE24524RELAY GEN PURPOSE DPDT 8A 24V |
3798 |
Add To CartInquiry Now |
Datasheet |
Box | RT2, SCHRACK | Active | Through Hole | 24VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | - | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VAC | 3.6 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
T9AS2L22-24RELAY GEN PURPOSE SPST 15A 24V |
2776 |
Add To CartInquiry Now |
Datasheet |
Bulk | T9A | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 15 A | 277VAC - Max | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|

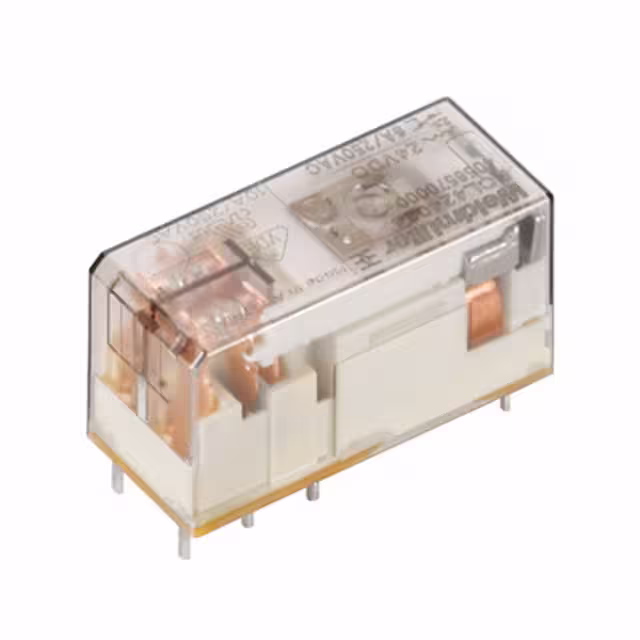

8693890000RELAY GEN PURPOSE SPDT 16A 115V |
2488 |
Add To CartInquiry Now |
Datasheet |
Bulk | RCL | Active | Through Hole | 115VAC | SPDT (1 Form C) | 16 A | 250VAC - Max | 6.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 86.3 VAC | 17.3 VAC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
T9AS1D22-110RELAY GEN PURPOSE SPST 30A 110V |
2111 |
Add To CartInquiry Now |
Datasheet |
Bulk | T9A | Active | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 9 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
G2R-1A4-H-DC12RELAY GEN PURPOSE SPST 5A 12V |
2371 |
Add To CartInquiry Now |
Datasheet |
Tray,Box | G2R | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|
G6EU-134P-ST-US-DC12RELAY GEN PURPOSE SPDT 3A 12V |
3089 |
Add To CartInquiry Now |
Datasheet |
Tube | G6E | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 250VAC, 220VDC - Max | 16.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) |
|
V23092A1012A302RELAY GEN PURPOSE SPST 6A 12V |
3115 |
Add To CartInquiry Now |
Datasheet |
Tube | SNR, SCHRACK | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
3-1415379-1RELAY GEN PURPOSE SPST 16A 24V |
2305 |
Add To CartInquiry Now |
Datasheet |
Bulk,Tube | RT1, Inrush, SCHRACK | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 16.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | - | 10 ms | 10 ms | -10°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
G6D-1A-ASI-NPDC21RELAY GEN PURPOSE SPST 5A 21V |
2183 |
Add To CartInquiry Now |
Datasheet |
Bulk | G6D-ASI | Active | Through Hole | 21VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 9.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 14.7 VDC | 2.1 VDC | 10 ms | 5 ms | -25°C ~ 70°C | Silver Alloy |
|
G6C-2117P-US-DC3RELAY GENERAL PURPOSE DPST 8A 3V |
3997 |
Add To CartInquiry Now |
Datasheet |
Bulk,Box | G6C | Active | Through Hole | 3VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 67 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 2.1 VDC | 0.3 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free |
|
RT114730RELAY GEN PURPOSE SPDT 12A 230V |
3436 |
Add To CartInquiry Now |
Datasheet |
Tube | RT1, SCHRACK | Active | Through Hole | 230VAC | SPDT (1 Form C) | 12 A | 400VAC - Max | - | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 172.5 VAC | 34.5 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
V23092-A1012-A201RELAY GEN PURPOSE SPDT 6A 12V |
3189 |
Add To CartInquiry Now |
Datasheet |
Tube | SNR, SCHRACK | Active | Through Hole | 12VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
V23092A1905A201RELAY GEN PURPOSE SPDT 6A |
3636 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Through Hole | - | SPDT (1 Form C) | 6 A | 400VAC - Max | - | Non Latching | - | PC Pin | Sealed - Fully | - | - | - | 12 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Gold (Au) |
|
G6B-2114P-US DC6RELAY GENERAL PURPOSE DPST 5A 6V |
2613 |
Add To CartInquiry Now |
Datasheet |
Bulk | G6B | Active | Through Hole | 6VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 380VAC, 125VDC - Max | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
G6B-2114P-1-US DC5RELAY GENERAL PURPOSE DPST 5A 5V |
2156 |
Add To CartInquiry Now |
Datasheet |
Tray | G6B | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 380VAC, 125VDC - Max | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
G6B-2214P-1-US DC5RELAY GENERAL PURPOSE DPST 5A 5V |
2941 |
Add To CartInquiry Now |
Datasheet |
Bulk | G6B | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free |
|
PT570512RELAY GEN PURPOSE 4PDT 6A 12V |
3529 |
Add To CartInquiry Now |
Datasheet |
Bulk | PT, SCHRACK | Active | Socketable | 12VAC | 4PDT (4 Form C) | 6 A | 240VAC - Max | - | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110 (2.8mm) | - | - | 9.6 VAC | 3.6 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
PT570615RELAY GEN PURPOSE 4PDT 6A 115V |
2236 |
Add To CartInquiry Now |
Datasheet |
Bulk | PT, SCHRACK | Active | Socketable | 115VAC | 4PDT (4 Form C) | 6 A | 240VAC - Max | - | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110 (2.8mm) | - | - | 92 VAC | 34.5 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) |
|

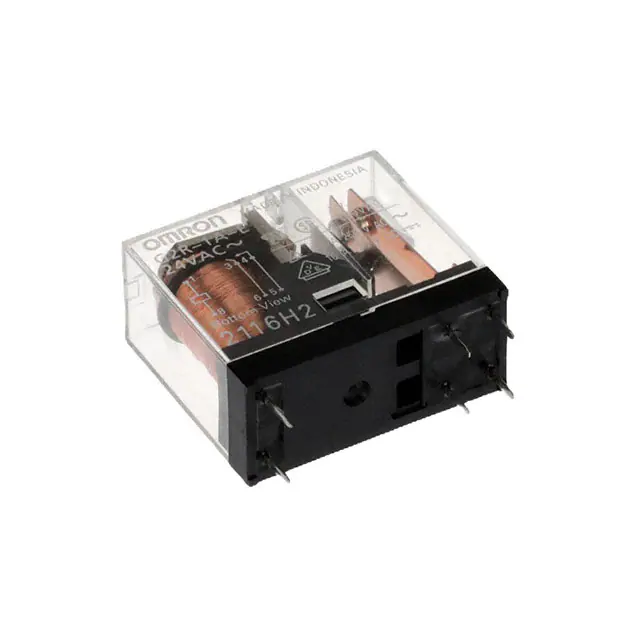

G2R-1A-E AC24RELAY GEN PURPOSE SPST 16A 24V |
2360 |
Add To CartInquiry Now |
Datasheet |
Tray | G2R | Active | Through Hole | 24VAC | SPST-NO (1 Form A) | 16 A | 380VAC, 125VDC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy |
