| Photo | Mfr. Part # | Stock | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH2281-5771STEP, F2, SQ.28, 1.8, , , BIPOLA |
2301 |
Add To CartInquiry Now |
Datasheet |
Tray | SH | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 9.91 / 70 | - | - | 0.197 (5.00mm) | 0.591 (15.00mm) | 0.906 (23.00mm) | Wire Leads | -10°C ~ 50°C | 2.6 Ohms |
|

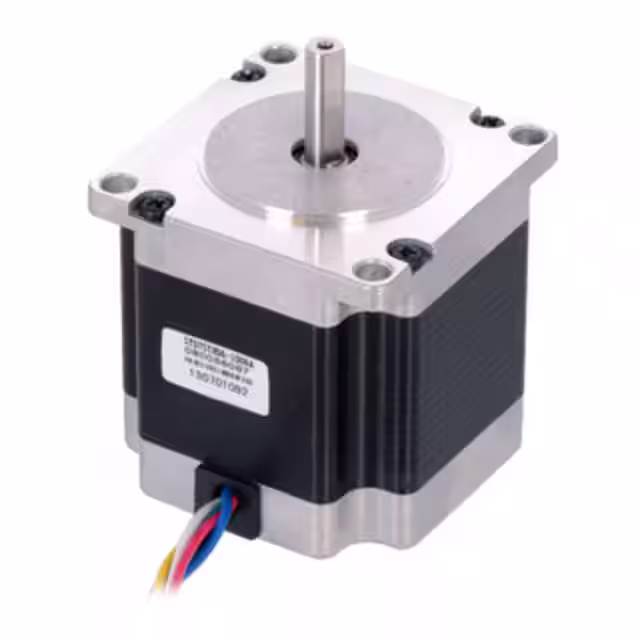

1472STPR MTR UNI/BIPLR 7.4V 1A/PHSE |
2442 |
Add To CartInquiry Now |
Datasheet |
- | - | Active | Hybrid | Unipolar | 7.4VDC | 1 A | 200 | 1.8° | - | 125 / 882.7 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.854 (47.10mm) | Wire Leads | -20°C ~ 50°C | 7.4 Ohms |
|

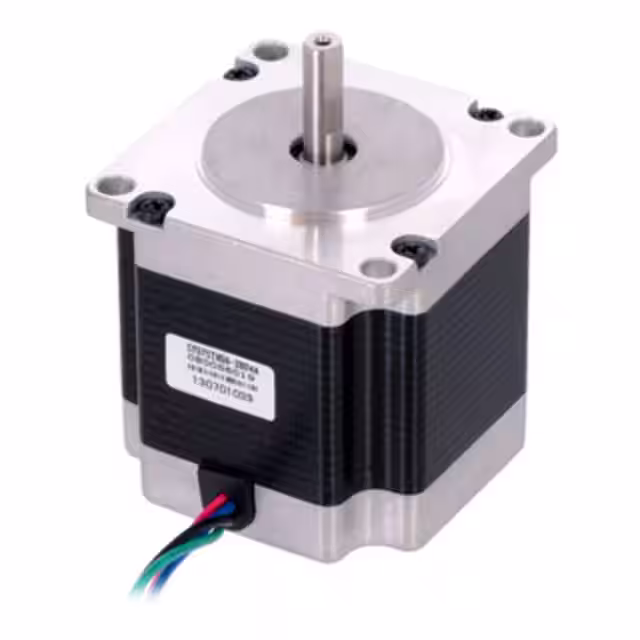

1474STPR MTR BIPOLAR 2.5V 2.8A/PHASE |
2292 |
Add To CartInquiry Now |
Datasheet |
- | - | Active | Hybrid | Bipolar | 2.5VDC | 2.8 A | 200 | 1.8° | - | 180 / 1271 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.827 (21.00mm) | 1.854 (47.10mm) | Wire Leads | -20°C ~ 50°C | 0.9 Ohms |
|

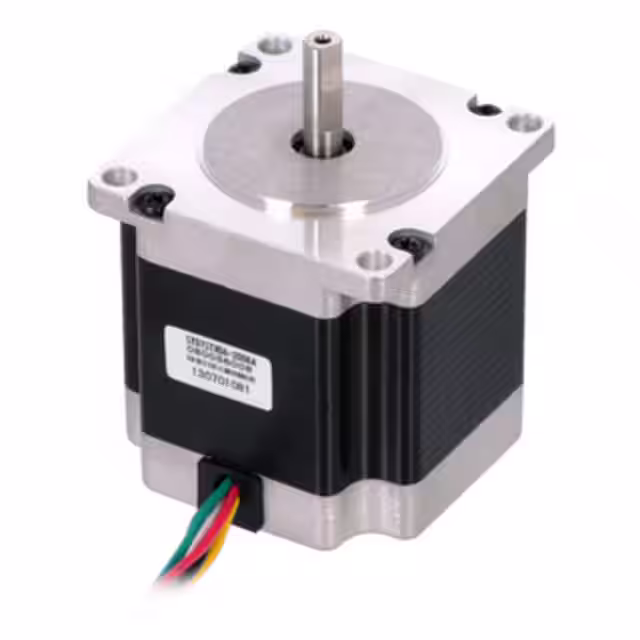

1473STPR MTR UNI/BIPLR 3.6V 2A/PHSE |
3336 |
Add To CartInquiry Now |
Datasheet |
- | - | Active | Hybrid | Unipolar | 3.6VDC | 2 A | 200 | 1.8° | - | 125 / 882.7 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.854 (47.10mm) | Wire Leads | -20°C ~ 50°C | 1.8 Ohms |
|
WO-4209M-01SSTEPPER MOTOR |
2551 |
Add To CartInquiry Now |
Datasheet |
Tray | - | Active | - | Bipolar | 24VDC | 840 mA | 400 | 0.9° | - | 51 / 360 | Square - 1.669 x 1.669 (42.40mm x 42.40mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 6.1 Ohms |
|
103H7822-1730STEP, F2, SQ.60, 1.8, NEMA, , BI |
3639 |
Add To CartInquiry Now |
Datasheet |
Box | H | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 4 A | 200 | 1.8° | - | 194 / 1370 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.43 Ohms |
|
|
103H7822-1760STEP, F2, SQ.60, 1.8, NEMA, , BI |
3872 |
Add To CartInquiry Now |
Datasheet |
Box | H | Active | Hybrid | Bipolar | 24VDC | 4 A | 200 | 1.8° | - | 194 / 1370 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.43 Ohms |
|
103H7123-5840STEP, F2, SQ.56, 1.8, , , BIPOLA |
2081 |
Add To CartInquiry Now |
Datasheet |
Box | H | Active | Hybrid | Bipolar | 24VDC | 3 A | 200 | 1.8° | - | 141.6 / 1000 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.7 Ohms |
|
|
SH2285-5731STEP, F2, SQ.28, 1.8, , , BIPOLA |
2718 |
Add To CartInquiry Now |
Datasheet |
Box | SH | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 20.53 / 145 | - | - | 0.197 (5.00mm) | 0.591 (15.00mm) | 0.906 (23.00mm) | Wire Leads | -10°C ~ 50°C | 3.75 Ohms |
|
|
SH2285-5771STEP, F2, SQ.28, 1.8, , , BIPOLA |
2593 |
Add To CartInquiry Now |
Datasheet |
Box | SH | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 20.53 / 145 | - | - | 0.197 (5.00mm) | 0.591 (15.00mm) | 0.906 (23.00mm) | Wire Leads | -10°C ~ 50°C | 3.75 Ohms |
|
|
103H7823-1730STEP, F2, SQ.60, 1.8, NEMA, , BI |
3997 |
Add To CartInquiry Now |
Datasheet |
Box | H | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 4 A | 200 | 1.8° | - | 382.4 / 2700 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.65 Ohms |
|

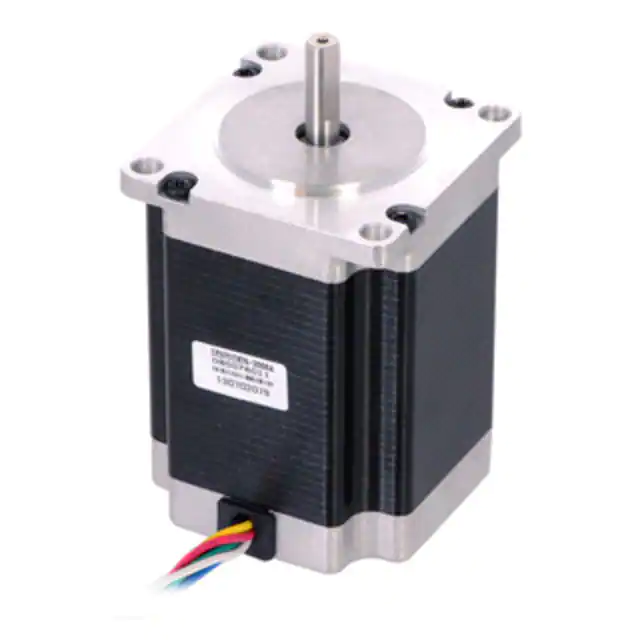

1475STPR MTR UNI/BIPLR 4.5V 2A/PHSE |
2347 |
Add To CartInquiry Now |
Datasheet |
- | - | Active | Hybrid | Unipolar | 4.5VDC | 2 A | 200 | 1.8° | - | 190 / 1341.7 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.854 (47.10mm) | Wire Leads | -20°C ~ 50°C | 2.25 Ohms |
|

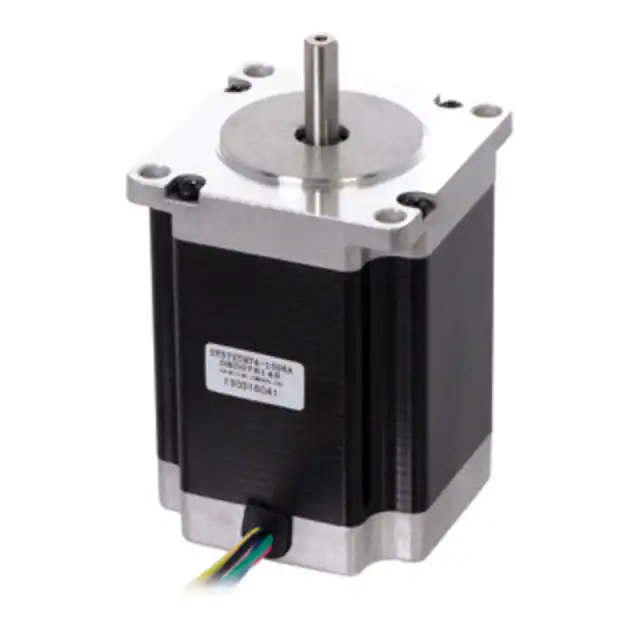

1477STPR MTR UNI/BIPLR 8.6V 1A/PHSE |
3596 |
Add To CartInquiry Now |
Datasheet |
- | - | Active | Hybrid | Unipolar | 8.6VDC | 1 A | 200 | 1.8° | - | 190 / 1341.7 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.854 (47.10mm) | Wire Leads | -20°C ~ 50°C | 8.6 Ohms |
|

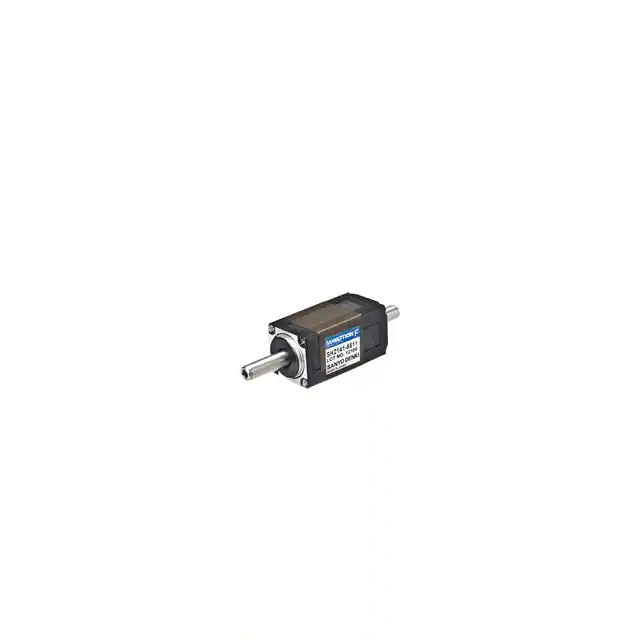

SH2141-5511PSTEP, F2, SQ.14, 1.8, , , BIPOLA |
2789 |
Add To CartInquiry Now |
Datasheet |
Box | SH | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 300 mA | 200 | 1.8° | - | 0.92 / 7 | Square - 0.551 x 0.551 (14.00mm x 14.00mm) | - | 0.157 (4.00mm) | 0.591 (15.00mm) | 0.453 (11.50mm) | Wire Leads | -10°C ~ 50°C | 21 Ohms |
|

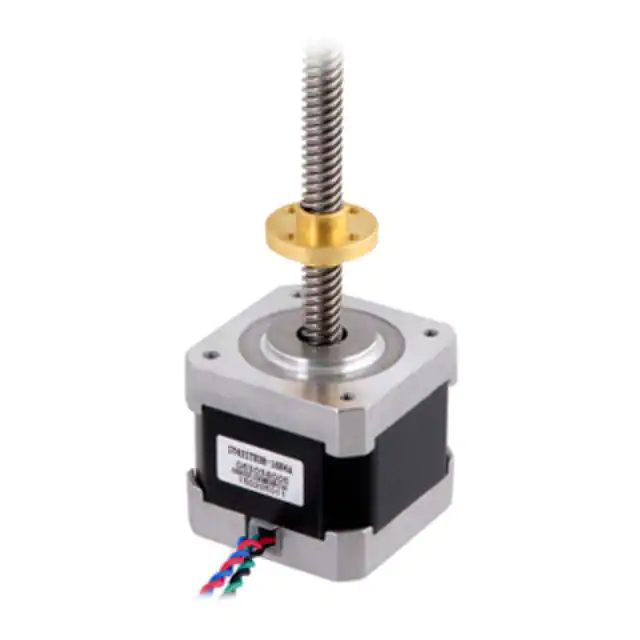

2690STEPPER MOTOR W/38CM LEAD SCREW |
2548 |
Add To CartInquiry Now |
Datasheet |
- | - | Active | Hybrid | Bipolar | 2.8VDC | 1.7 A | 200 | 1.8° | - | 51 / 360 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.315 (8.00mm) | 11.102 (282.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.65 Ohms |
|
|
103H7128-5840STEP, F2, SQ.56, 1.8, , , BIPOLA |
2121 |
Add To CartInquiry Now |
Datasheet |
Box | H | Active | Hybrid | Bipolar | 24VDC | 3 A | 200 | 1.8° | - | 283.2 / 2000 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.03 Ohms |
|
103H7822-2511STEP, F2 MOTOR, SQ.60, 2 PHASE S |
2495 |
Add To CartInquiry Now |
Box | - | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 4.4 A | 200 | 1.8° | - | 155.8 / 1100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.4 Ohms | |
|
SH2145-5611PSTEP, F2, SQ.14, 1.8, , , BIPOLA |
3931 |
Add To CartInquiry Now |
Datasheet |
Box | SH | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 400 mA | 200 | 1.8° | - | 1.42 / 10 | Square - 0.551 x 0.551 (14.00mm x 14.00mm) | - | 0.157 (4.00mm) | 0.591 (15.00mm) | 0.453 (11.50mm) | Wire Leads | -10°C ~ 50°C | 19 Ohms |
|
|
SH2145-5641PSTEP, F2, SQ.14, 1.8, , , BIPOLA |
3718 |
Add To CartInquiry Now |
Datasheet |
Box | SH | Active | Hybrid | Bipolar | 24VDC | 400 mA | 200 | 1.8° | - | 1.42 / 10 | Square - 0.551 x 0.551 (14.00mm x 14.00mm) | - | 0.157 (4.00mm) | 0.591 (15.00mm) | 0.453 (11.50mm) | Wire Leads | -10°C ~ 50°C | 19 Ohms |
|
SP2563-5260STEP, F2, SQ.56, 1.8, IP65, , BI |
3651 |
Add To CartInquiry Now |
Datasheet |
Box | SP | Active | Hybrid | Bipolar | 100VAC | 3 A | 200 | 1.8° | - | 141.6 / 1000 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.75 Ohms |
