| Photo | Mfr. Part # | Stock | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADQM26012RELAY GEN PURPOSE SPST 60A 12V |
2575 |
AñadirInvestigación |
Datasheet |
Tube | ADQM | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 60 A | 250VAC - Max | 83.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 9.6 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free |
|

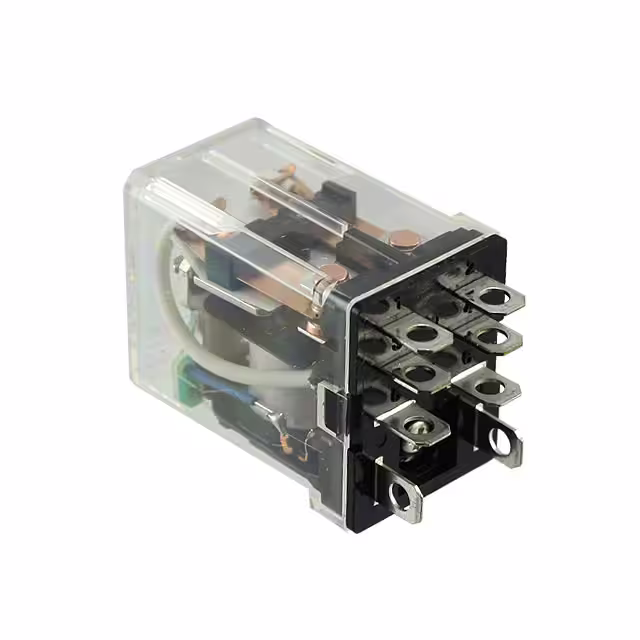

AHK22124RELAY GEN PURPOSE DPDT 10A 24V |
2650 |
AñadirInvestigación |
Datasheet |
Bulk | AHK | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 37 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
HC1E-HP-DC24V-FRELAY GEN PURPOSE SPDT 5A 24V |
3526 |
AñadirInvestigación |
Datasheet |
Bulk | HCE | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 250VAC - Max | 37 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free |
|
HC1-H-AC240V-FRELAY GEN PURPOSE SPDT 10A 240V |
3681 |
AñadirInvestigación |
Datasheet |
Bulk | HC | Obsolete | Socketable | 240VAC | SPDT (1 Form C) | 10 A | 250VAC - Max | 5 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
|
HC2E-H-DC24V-FRELAY GEN PURPOSE DPDT 3A 24V |
3828 |
AñadirInvestigación |
Datasheet |
Bulk | HCE | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 250VAC - Max | 37 mA | Non Latching | - | Plug In | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free |
|
HC2-HP-AC115V-FRELAY GEN PURPOSE DPDT 7A 115V |
2095 |
AñadirInvestigación |
Datasheet |
Bulk | HC | Obsolete | Through Hole | 115VAC | DPDT (2 Form C) | 7 A | 250VAC - Max | 11.4 mA | Non Latching | - | PC Pin | - | - | 92 VAC | 34.5 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
HC2-HP-DC12V-FRELAY GEN PURPOSE DPDT 7A 12V |
2992 |
AñadirInvestigación |
Datasheet |
Bulk | HC | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 7 A | 250VAC - Max | 75 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
HC2-HP-DC24V-FRELAY GEN PURPOSE DPDT 7A 24V |
2674 |
AñadirInvestigación |
Datasheet |
Bulk | HC | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 7 A | 250VAC - Max | 37 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
HC4-H-AC120VRELAY GEN PURPOSE 4PDT 5A 120V |
2394 |
AñadirInvestigación |
Datasheet |
Bulk | HC | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 10.9 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi) |
|

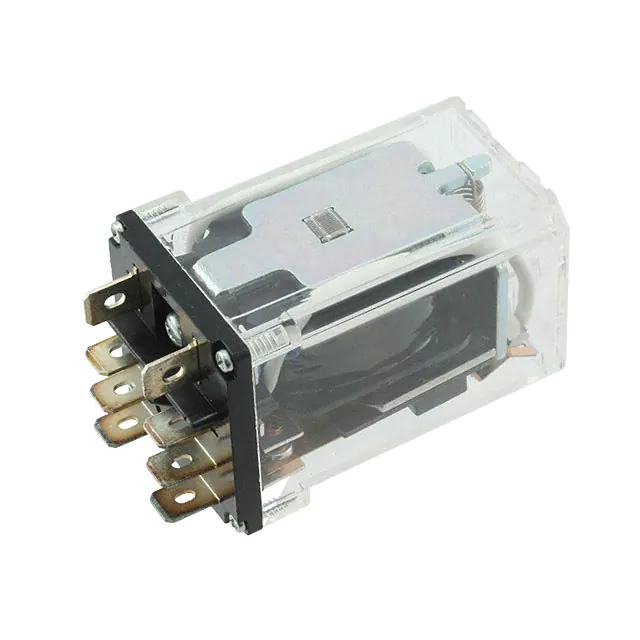

HG2-AC115V-FRELAY GEN PURPOSE DPDT 20A 115V |
3948 |
AñadirInvestigación |
Datasheet |
Bulk | HG | Obsolete | Socketable | 115VAC | DPDT (2 Form C) | 20 A | 250VAC - Nom | 31.3 mA | Non Latching | - | Plug In, Quick Connect - 0.250 (6.3mm) | - | - | 92 VAC | 34.5 VAC | 30 ms | 30 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) |
|

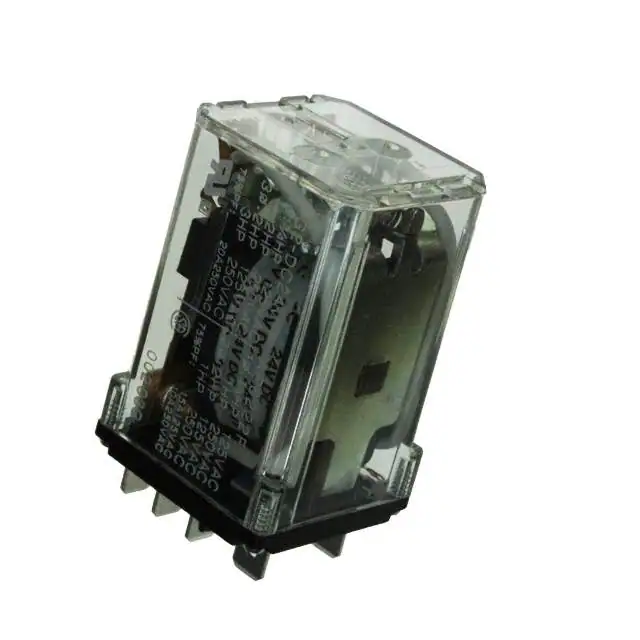

HG2-DC24V-FRELAY GEN PURPOSE DPDT 20A 24V |
2557 |
AñadirInvestigación |
Datasheet |
Bulk | HG | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 20 A | 250VAC - Nom | 57.6 mA | Non Latching | - | Plug In, Quick Connect - 0.250 (6.3mm) | - | - | 19.2 VDC | 2.4 VDC | 30 ms | 30 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) |
|

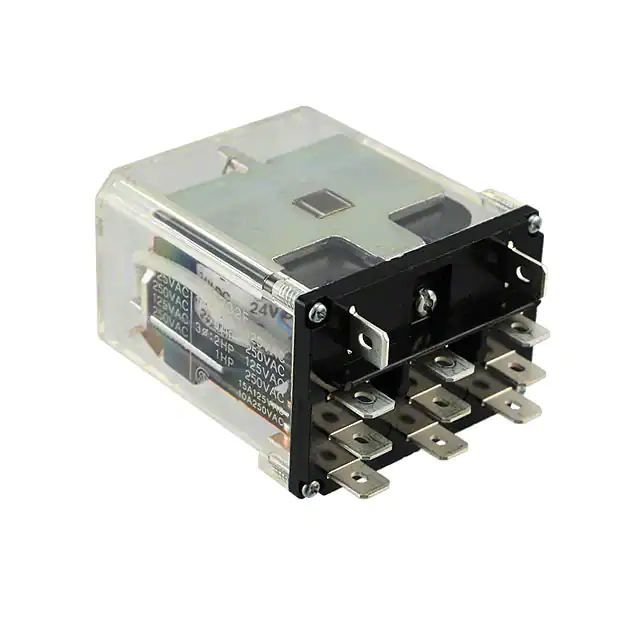

HG3-DC24V-FRELAY GEN PURPOSE 3PDT 20A 24V |
2941 |
AñadirInvestigación |
Datasheet |
Bulk | HG | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 20 A | 250VAC - Nom | 66 mA | Non Latching | - | Plug In, Quick Connect - 0.250 (6.3mm) | - | - | 19.2 VDC | 2.4 VDC | 40 ms | 40 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) |
|

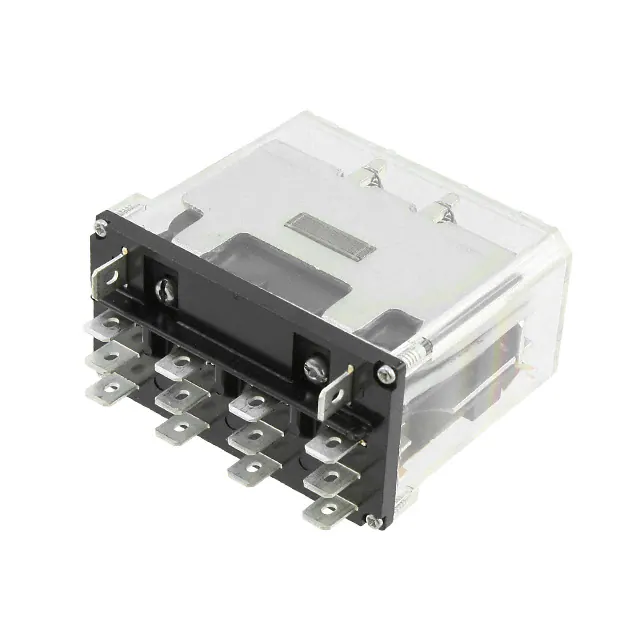

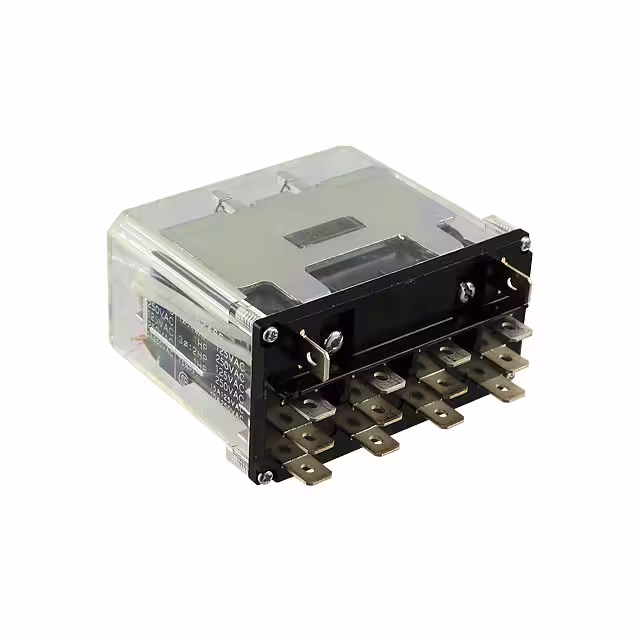

HG4-AC115V-FRELAY GEN PURPOSE 4PDT 20A 115V |
3035 |
AñadirInvestigación |
Datasheet |
Bulk | HG | Obsolete | Socketable | 115VAC | 4PDT (4 Form C) | 20 A | 250VAC - Nom | 66.1 mA | Non Latching | - | Plug In, Quick Connect - 0.250 (6.3mm) | - | - | 92 VAC | 34.5 VAC | 40 ms | 40 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) |
|
HG4-DC110V-FRELAY GEN PURPOSE 4PDT 20A 110V |
2353 |
AñadirInvestigación |
Datasheet |
Bulk | HG | Obsolete | Socketable | 110VDC | 4PDT (4 Form C) | 20 A | 250VAC - Nom | 20.3 mA | Non Latching | - | Plug In, Quick Connect - 0.250 (6.3mm) | - | - | 88 VDC | 11 VDC | 40 ms | 40 ms | -50°C ~ 40°C | Silver Tin Oxide (AgSnO) |
|
HL1-H-DC24V-FRELAY GEN PURPOSE SPDT 15A 24V |
2660 |
AñadirInvestigación |
Datasheet |
Bulk | HL | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 15 A | 125VAC - Nom | 37 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|

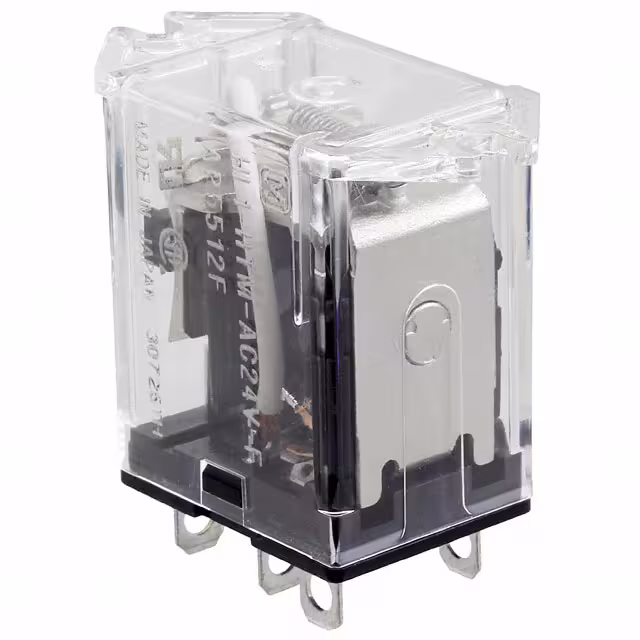

HL1-HTM-AC24V-FRELAY GEN PURPOSE SPDT 15A 24V |
2241 |
AñadirInvestigación |
Datasheet |
Bulk | HL | Obsolete | Chassis Mount | 24VAC | SPDT (1 Form C) | 15 A | 125VAC - Nom | 50 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
HL2-H-AC115V-FRELAY GEN PURPOSE DPDT 10A 115V |
3225 |
AñadirInvestigación |
Datasheet |
Bulk | HL | Obsolete | Socketable | 115VAC | DPDT (2 Form C) | 10 A | 125VAC - Nom | 10.4 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 92 VAC | 34.5 VAC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
HL2-H-AC24V-FRELAY GEN PURPOSE DPDT 10A 24V |
3400 |
AñadirInvestigación |
Datasheet |
Bulk | HL | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 125VAC - Nom | 50 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
HL2-HTM-AC24V-FRELAY GEN PURPOSE DPDT 10A 24V |
3326 |
AñadirInvestigación |
Datasheet |
Bulk | HL | Obsolete | Chassis Mount | 24VAC | DPDT (2 Form C) | 10 A | 125VAC - Nom | 50 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
HL2-HTM-DC12V-FRELAY GEN PURPOSE DPDT 10A 12V |
2428 |
AñadirInvestigación |
Datasheet |
Bulk | HL | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 10 A | 125VAC - Nom | 75 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
