| Photo | Mfr. Part # | Stock | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM-17DY-24RELAY GEN PURPOSE 4PDT 25A 24V |
3062 |
AñadirInvestigación |
Datasheet |
Bulk | PM | Obsolete | Chassis Mount | 24VDC | 4PDT (4 Form C) | 25 A | 277VAC - Max | 182 mA | Non Latching | - | Screw Terminal | - | - | 18 VDC | - | - | - | - | - |
|
S86R11A1B1D1120RELAY GEN PURPOSE DPDT 20A 120V |
2793 |
AñadirInvestigación |
Datasheet |
Tray | S86R | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 20 A | 277VAC - Max | 33 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 102 VAC | - | - | - | -10°C ~ 65°C | Silver Cadmium Oxide (AgCdO) |
|
S87R11A2B1D1120RELAY GEN PURPOSE DPDT 20A 120V |
2782 |
AñadirInvestigación |
Datasheet |
Bulk | S87R | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 20 A | 277VAC - Max | 33 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 102 VAC | - | - | - | -10°C ~ 65°C | Silver Cadmium Oxide (AgCdO) |
|
|
S89R5ABD1-24RELAY IMPULSE SPDT 15A 24V |
3532 |
AñadirInvestigación |
Datasheet |
Bulk | S89R | Obsolete | Chassis Mount | 24VAC | SPDT (1 Form C) | 15 A | 277VAC - Max | 375 mA | Latching, Single Coil | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -10°C ~ 60°C | - |
|

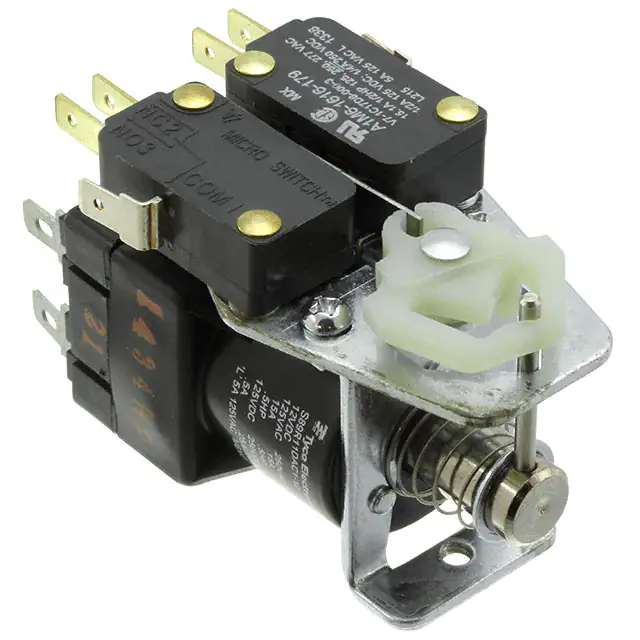

S89R11DAC1-12RELAY IMPULSE DPDT 15A 12V |
3312 |
AñadirInvestigación |
Datasheet |
Bulk | S89R | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 15 A | 277VAC - Max | 533 mA | Latching, Single Coil | - | Quick Connect - 0.187 (4.7mm) | - | Class B | 9 VDC | - | - | - | -10°C ~ 60°C | - |
|
|
S89R11DBD1-12RELAY IMPULSE DPDT 15A 12V |
3963 |
AñadirInvestigación |
Datasheet |
Bulk | S89R | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 15 A | 277VAC - Max | 533 mA | Latching, Single Coil | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 9 VDC | - | - | - | -10°C ~ 60°C | - |
|
S89R11APP1-120RELAY IMPULSE DPDT 15A 120V |
3882 |
AñadirInvestigación |
Datasheet |
Bulk | S89R | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 15 A | 277VAC - Max | 75 mA | Latching, Single Coil | - | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -10°C ~ 60°C | - |
|
G2R-1-ASI-DC12RELAY GEN PURPOSE SPDT 10A 12V |
3519 |
AñadirInvestigación |
Datasheet |
Tray | G2R | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 43.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|
|
G2R-1-ASI-DC24RELAY GEN PURPOSE SPDT 10A 24V |
3950 |
AñadirInvestigación |
Datasheet |
Tray | G2R | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|
|
G2R-1-E-ASI-DC12RELAY GEN PURPOSE SPDT 16A 12V |
3193 |
AñadirInvestigación |
Datasheet |
Tray,Box | G2R | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 380VAC, 125VDC - Max | 43.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|
|
G2R-1-E-T130 DC24RELAY GEN PURPOSE SPDT 16A 24V |
2113 |
AñadirInvestigación |
Datasheet |
Tray | G2R | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 380VAC, 125VDC - Max | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|
|
G2R-1-H-DC48RELAY GEN PURPOSE SPDT 5A 48V |
2988 |
AñadirInvestigación |
Datasheet |
Tray | G2R | Active | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 380VAC, 125VDC - Max | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 7.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|
|
G2R-1-H-DC6RELAY GEN PURPOSE SPDT 5A 6V |
2599 |
AñadirInvestigación |
Datasheet |
Tray | G2R | Active | Through Hole | 6VDC | SPDT (1 Form C) | 5 A | 380VAC, 125VDC - Max | 60 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|
|
G2R-1-H-T130 DC12RELAY GEN PURPOSE SPDT 5A 12V |
2032 |
AñadirInvestigación |
Datasheet |
Tray | G2R | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 380VAC, 125VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
, G2R-1-S-DC12S, G2R-1-S-DC24S, G2R-1-S-DC48(S).jpg)
|
G2R-1-S-AC240RELAY GEN PURPOSE SPDT 10A 240V |
2364 |
AñadirInvestigación |
Datasheet |
Bulk | G2RS | Obsolete | Socketable | 240VAC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 3.2 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 192 VAC | 72 VAC | 15 ms | 10 ms | -40°C ~ 70°C | - |
|
|
G2R-1-SN-AC120RELAY GEN PURPOSE SPDT 10A 120V |
3725 |
AñadirInvestigación |
Datasheet |
Bulk | G2RS | Obsolete | Socketable | 120VAC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 7.5 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | - |
|
|
G2R-1-SN-AC240RELAY GEN PURPOSE SPDT 10A 240V |
3532 |
AñadirInvestigación |
Datasheet |
Bulk | G2RS | Obsolete | Socketable | 240VAC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 3.2 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 192 VAC | 72 VAC | 15 ms | 10 ms | -40°C ~ 70°C | - |
|
|
G2R-1-SN-DC12RELAY GEN PURPOSE SPDT 10A 12V |
2485 |
AñadirInvestigación |
Datasheet |
Bulk | G2RS | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 43.2 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | - |
|
|
G2R-1-SN-DC24RELAY GEN PURPOSE SPDT 10A 24V |
3827 |
AñadirInvestigación |
Datasheet |
Bulk | G2RS | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 21.6 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | - |
|
|
G2R-1-SND-DC12RELAY GEN PURPOSE SPDT 10A 12V |
3683 |
AñadirInvestigación |
Datasheet |
Bulk | G2RS | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 43.2 mA | Non Latching | Diode, Lighted Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 8.4 VDC | 1.8 VDC | 15 ms | 20 ms | -40°C ~ 70°C | - |
